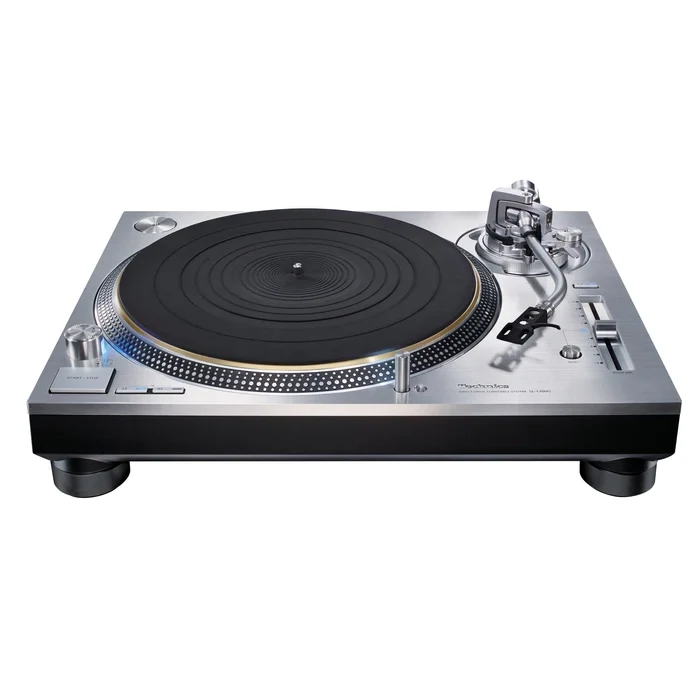

the SL-1200G features the latest technologies to solve issues such as cogging. Includes a newly developed coreless direct-drive motor with greatly increased precision by incorporating Blu-ray Disc technology for rotation control.

Created by Technics in pursuit of true analog record sound, rather than nostalgia, the SL-1200G includes the latest technologies to solve issues involved with direct-drive systems, such as cogging. The SL-1200G includes a newly developed coreless direct-drive motor with greatly increased precision by incorporating Blu-ray Disc technology for rotation control. This cutting-edge direct-drive system will surpass previous direct-drive systems. It is not a reproduction but innovation. We are redefining the reference in direct-drive turntables for the modern age.

• Newly developed coreless direct-drive motor with no iron core eliminates cogging
• Advanced motor control technology for high starting torque and high-speed stability.
• Three-layer turntable platter construction with deadening rubber to eliminate unnecessary resonance
• The balance of the turntable is adjusted at the factory using specialized high-precision equipment
• High-sensitivity tonearm with lightweight magnesium for a high-damping effect


  General
  Power Supply

  AC120 V, 60 Hz
  Power Consumption

  14 W Approx. 0.2W (Standby)
  Dimensions (W x H x D)

  17-27/32 x 6-13/16 x 14-21/32 inch
  Weight

  Approx. 39.7lbs
  Accessories

  Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight(S), Auxiliary weight(L), Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Screw set for turntable, Owner's Manual
  Terminals
  Audio Output

  PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
  Tonearm Section
  Type

  Universal Static Balance
  Effective Length

  230mm (9-1/16")
  Overhang

  15mm (19/32")
  Tracking Error Angle

  Within 2° 32' (at the outer groove of 30cm(12") record), Within 0° 32' (at the inner groove of 30cm(12") record)
  Offset Angle

  22°
  Arm-height Adjustment Range

  0 - 6 mm
  Stylus Pressure Adjustment Range

  0 - 4 g (direct reading)
  Head Shell Weight

  Approx. 7.6 g
  Applicable Cartridge Weight Range

  (without auxiliary weight) 5.6 - 12.0g 14.3 - 20.7g (including headshell) (with small auxiliary weight) 10.0 - 16.4g 18.7 - 25.1g (including headshell) (with large auxiliary weight) 14.3 - 19.8g 23.0 - 28.5g (including headshell)
  Cartridge Mounting Dimension

  JIS 12.7 mm Interval
  Head Shell Terminal Lug

  1.2 mm φ 4-pin Terminal Lug
  Turntable Section
  Type

  Direct Drive Manual Turntable
  Turntable Speeds

  33 1/3, 45, 78 rpm
  Adjust Range

  ±8%, ±16%
  Starting Torque

  3.3 kg･cm (2.8 lb-in)
  Build-up Characteristics

  0.7 s. from standstill to 33 1/3 r/min
  Wow And Flutter

  0.025% W.R.M.S. (JIS C5521)
  Rumble

  78dB (IEC 98A Weighted)
  Turntable Platter

  Brass and Aluminum diecast combined, Diameter 332mm (13-5/64"), Weight：About 3.6kg (7 15/16 lb) (Including rubber sheet)
