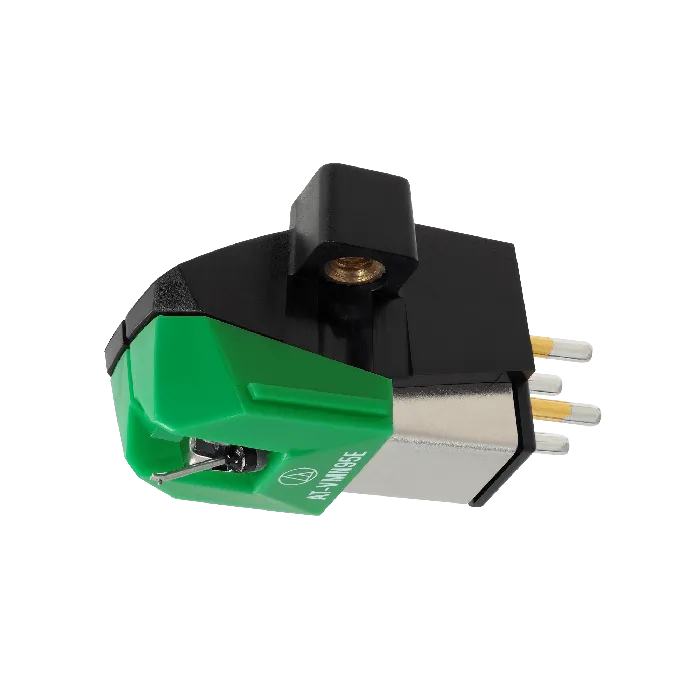

AT-VM95E
Dual Moving Magnet Cartridge
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus
Specifications
|
Cartridge & Stylus |
|
|
Frequency Response |
20-22,000 Hz |
|
Channel Separation |
20 (dB at 1 kHz) |
|
Vertical Tracking Angle |
23° |
|
Vertical Tracking Force |
1.8-2.2 g (2.0 g standard) |
|
Stylus Construction |
Bonded round shank |
|
Recommended Load Impedance |
47,000 ohms |
|
Coil Impedance |
3.3 k ohms (1 kHz) |
|
DC Resistance |
485 ohms |
|
Coil Inductance |
550 mH (1 kHz) |
|
Output Voltage |
4.0 mV (1 kHz, 5 cm/sec.) |
|
Output Channel Balance |
2.0 dB (1 kHz) |
|
Stylus Shape |
0.3 x 0.7 mil elliptical |
|
Cantilever |
Aluminum pipe |
|
Static Compliance |
17 x 10 – 6 cm / dyne |
|
Dynamic Compliance |
7 x 10 – 6 cm / dyne (100 Hz) |
|
Mounting |
Half-inch |
|
Cartridge Weight |
6.1g |
|
Dimensions |
17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D |
|
Accessories Included |
Two 11 mm installation screws, two 8 mm installation screws, two washers |
|
Model |
AT-VM95E |
|
Mounting Feature |
Half-inch mount |
|
Recommended Load Capacitance |
100 to 200 pF |
|
Replacement Stylus |
AT-VMN95E |
|
Stylus Size |
0.3 x 0.7 mil |
|
Type |
VM Stereo Dual Magnet |
|
Weight |
6.1 g (0.22 oz) |
|
Wire Used for Coil |
T.P. Copper |
