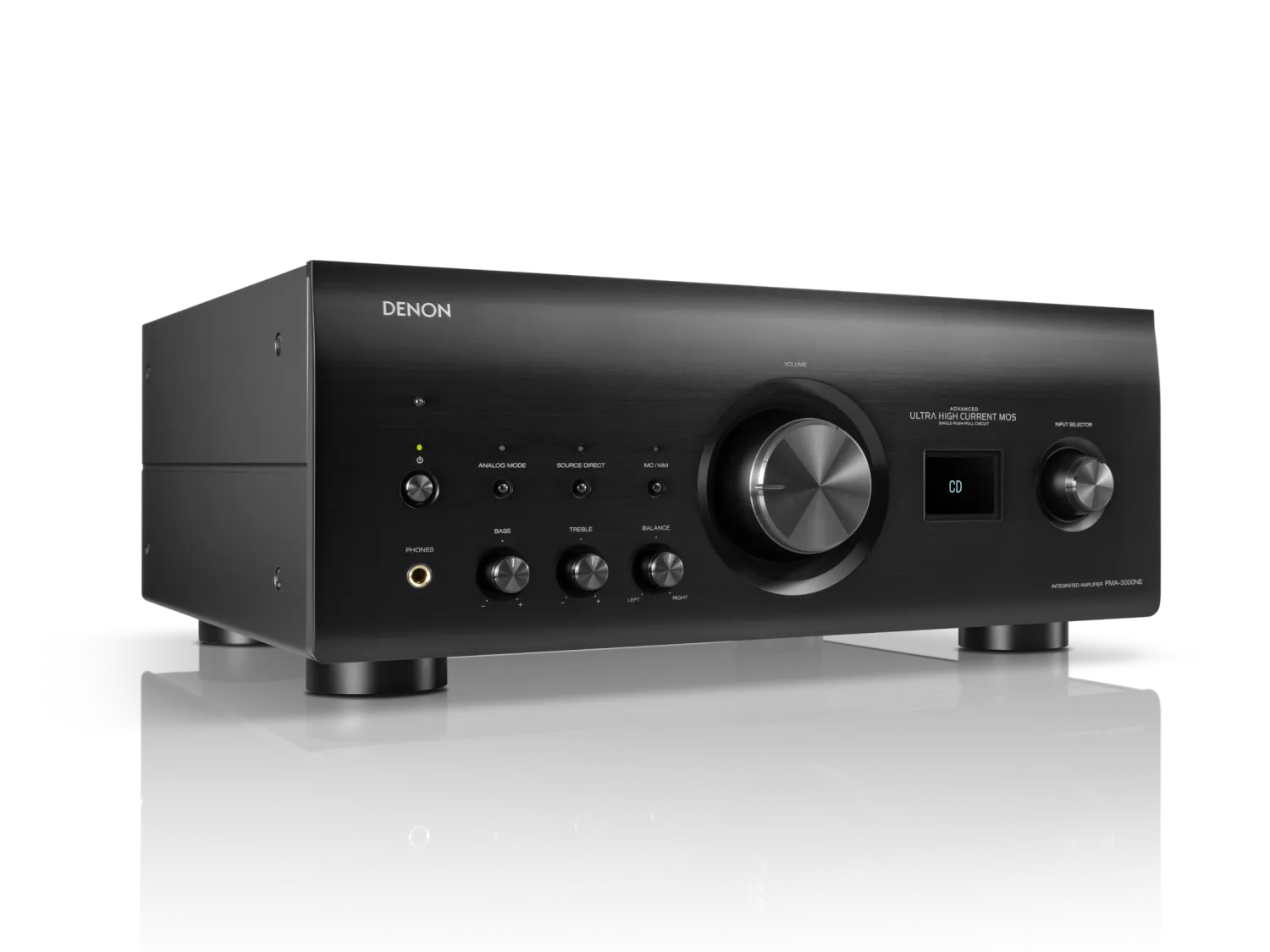

Denon
PMA-3000NE
2 Ch. 80W Integrated Amplifier with MM/MC phono stage
The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.
- 2 channels
- 80 watts per channel
- MM/MC phono stage
- Ultra AL32 Processing
- Optical, coaxial, and USB digital connections
- Analog mode
Audio excellence, redefined
With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favorite music with clarity and precision.
Drives even the most demanding speakers
A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.
Seamlessly integrate high-resolution digital audio
Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
Unlock your vinyl collection’s full potential
The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its Advance UHC-MOS Single Push-pull Circuit and differential 1-stage amplifier drive demanding speakers with exceptional clarity and linearity.
Denon's Ultra AL32 Processing uses interpolation algorithms to produce high-resolution output. Supporting input signals up to 384kHz/32-bit, it upsamples for smoother waveforms and improved sound reproduction.
The PMA-3000NE's phono stage supports both MM and MC cartridges for truest vinyl reproduction in any setup. A high-gain design and “simple and straight” circuitry minimize distortion for pure, detailed sound.
The PMA-3000NE’s versatile digital connections, including optical, coaxial, and USB Type B, support up to 384kHz/32-bit and 11.2MHz DSD audio.
Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.
Sonic Innovation
For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Specifications
Rated Output Power
80W + 80W
(8 ohm,20 Hz-20 kHz,THD 0.07%)
160W + 160W
(4 ohm, 1 kHz, THD 0.7%)
Total Harmonic distortion
0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Input Sensitivity: Phono input
MM: 2.5 mV / 47 kohm
MC: 200 μV / 100 ohm
Input Sensitivity:CD/LINE/RECORDER
135 mV / 19 kohm
Input Sensitivity: Power Amp input
1.0V / 15 kohm (EXT. PRE)
Signal to Noise Ratio
PHONO (MM): 89 dB
PHONO (MC): 74 dB
CD: 107 dB
Power Consumption
400W
Power Consumption at Standby
0.2W TV autoplay off
0.4W TV autoplay on
Audio Features
Power Amplifier Circuit
New UHC-MOS
Single Push Pull (7)
Preamplifier Circuit
Variable Gain Preamplifier (OP AMP)
Bass / Treble / Mid / Balance Control
Yes / Yes / No / Yes
Source Direct
Yes
Analog Amp Mode
Yes (button on front panel)
DAC Circuit
ES9018K2M × 4
Digital Processing
Ultra AL32 Processing
DAC Master Clock Design
Yes
Asyncronous mode (for USB-B input)
Yes
