Fezz Audio

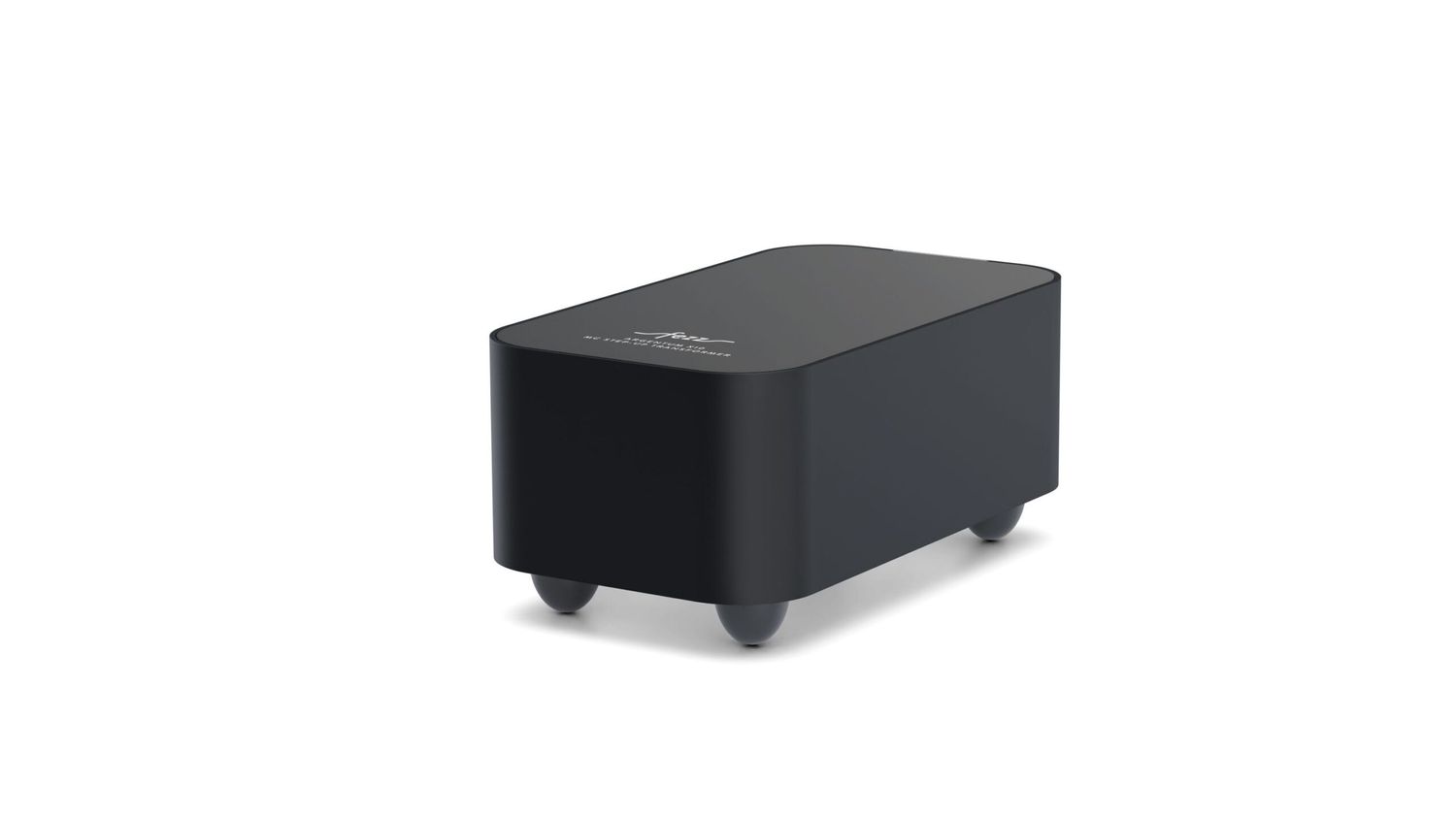

Argentum X10 Step-Up Transformer

Product description

Argentum X10 is high-end MC step-up transformer. There is not a single compromise in its construction – it has been carefully designed to ensure highest fidelity possible. To create the ultimate step-up transformer we have selected the very finest materials: Argentum X10 is wound with 99,9% pure silver wire on a high permeability nanocrystalline core. To ensure noiseless performance it employs double shielding: high permeability mu-metal magnetic shielding and pure OFC copper ribbon electric shielding. With its careful design, ensuring bandwidth extending from 8 Hz to 110 kHz and THD below 0,01% at rated level it is truly beyond compare. Fezz Argentum X10 step-up transformer is dedicated for: Audio Technica AT33EV, AT33SA, AT33PTG II, AT33 MONO, AT-OC9XEB, AT-OC9XEN, AT-OC9XML, AT-OC9XSH, AT-OC9XSL ,AT-ART20, AT-MC2022; Sumiko Blue Point no. 3, Blue Point special Evo 3, Palo Santos Presentation, Celebration 40, Starling, Songbird LOW, Blackbird LOW; Denon 103, 103R; Hana EL, SL, SL Mono; Gold Note Donatello Gold, Machiavelli mk2, Tuscany; Rega Ania; Benz Micro MC Silver, Micro MC Gold, Ace, Glider, Wood, Reference, Ruby, Gullwing, Ebony; Sound-Smith Paua mkII, Zephyr MIMC, Hyperion, Hyperion MKII-MR, Sussurro mk II, Sussurro Gold Limited Edition and other cartridges with impedance 10-50 Ω

Winding material:

99,9% pure silver

Core material:

nanocrystalline anisotropic high permeability alloy

Magnetic shield material:

high permeability mu-metal

Electric shield material:

pure OFC copper ribbon

Step-up ratio:

1:10 (20 dB)

Recommended load:

47 kΩ

Recommended cartidge impedance:

10-50 Ω

Total harmonic distortion:

<0,01%

Bandwidth:

8 Hz – 110 kHz (Z = 30 Ω)

Weight:

2,5 kg

Dimensions:

120 mm x 95 mm x 212 mm
