Music Hall MMF 1.5
Product Highlights:
- Gorgeous real cherry wood veneer
- Built-in bypassable phono pre-amplifier
- 9" S-shaped aluminum tonearm with removable headshell for easy cartridge changing
- Low noise three-speed belt-drive motor provides 33⅓, 45, and 78 rpm
- Properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge
- Adjustable electronic speed control
- Special vibration-damping feet
Dimensions and Warranty:
- Dimensions: 17.1" x 14.5" x 5"
- Weight: 12 lbs.
- Warranty: 1 year

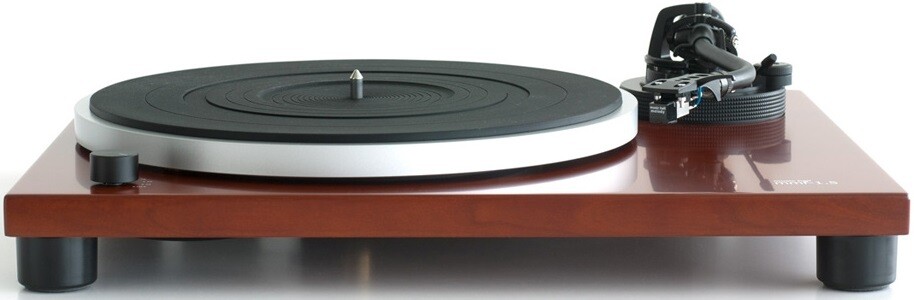

All About Music Hall MMF-1.5 Turntable
The Music Hall MMF-1.5 turntable is a beautifully refined piece that sets your world to groove and your feet to dance. Its superior S-shaped alloy tonearm, top-quality Music Hall Melody cartridge, and 3-speed belt drive design deliver exceptional sound quality, while the built-in phono preamp allows you to connect directly to your current system. The included hinged dust cover keeps your MMF-1.5 protected when not in use. With a built-in speed control circuit, the MMF-1.5 ensures the accuracy of its 3 speeds, providing you with an immersive listening experience from start to finish.
Music Hall MMF-1.5 Turntable Specs
Turntable Type: 3-speed full manual Motor: DC motor Driving Method: Belt drive Platter: 305mm dia. aluminum die-cast Speeds: 33 1/3, 45, and 78rpm Wow & Flutter: less than 0.1% WTD at 3KHz RMS(CD-4005) Limit: Less than 0.15% WTD at 3KHz RMS(CD-4005) S/N Ratio: More than 65dB (DIN-B) (SS-4242) Limit: More than 62dB (DIN-B) (SS-4242 Speed Tolerance: 3000Hz +/-1%(CD-4005) Power Supply: DC12V,2.0A Universal Power Supply Consumption: 4W Dimensions (WxDxH): 17.1" x 14.5" x 5" (435x367x127mm) Weight: 12lbs. (5.4Kg) Cartridge Included Cartridge: Music Hall Melody Output Voltage: 2.5mV +/- 3dB at 1KHz 3.54cm/sec Channel Separation: measurement point 1KHz over 18dB Channel Balance: 25 dB or less at 1KHz Frequency Response: measurement point 10KHz / 1KHz 0 +/- 3dB Tracking Force: 2.0 +/- 0.5 grams Cartridge Type: Moving Magnet Stylus: Diamond Channel Separation: More than 15 dB at 1KHz (CD-4005) Channel Balance: Within 2.5 dB at 1KHz (CD-4005) Phono Output Level: 1.5~3.6 mV at 1KHz 5cm/sec (CD-4005) Line Output: 90-216 mV at 1KHz 5cm/sec (CD-4005) RIAA: 20Hz~20KHz: +1/-3 dB Tonearm Type: static balanced S-shaped Effective Arm Length: 230mm Overhang: 15mm Offset Angle: 22 degrees Tracking Error Angle: 3 degrees or less Rotation Movability: (1-rotation 4g) Applicable Cartridge Weight: 5~8.5g (including headshell 15~18.5g) Anti-Skating Adjustment Range: 0~3g Arm Lifter: Oil damper type Height Of Stylus: 8~10.5mm Lifter Descent Time: 1.5~3 sec (stylus pressure: 2g) Horizontal Sensitivity: less than 0.2g Vertical Sensitivity: less than 0.2g
